Features

  • Lower and powerful bass with excellent transiency!
  • Very excellent fidelity in mid-high range, a perfect and authentic HiFi 2-way system！
  • Perfect linear source, very good stereo quality！
  • Very high dynamic range, easy to handle high-volume music and no afraid of speakers damage！
  • Small size yet high energy！
BS-1 just has a volume of only 30L, but when you have listened its audio quality, you will be shocked by its unbelievable bass energy!

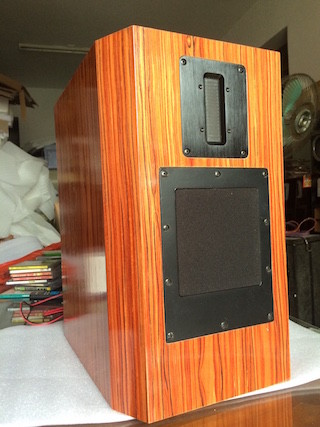

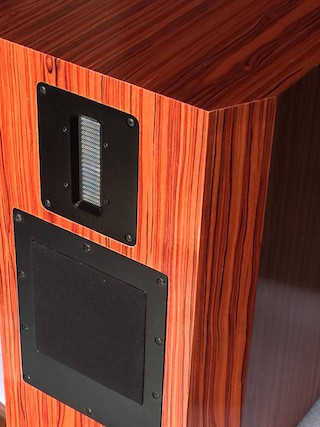

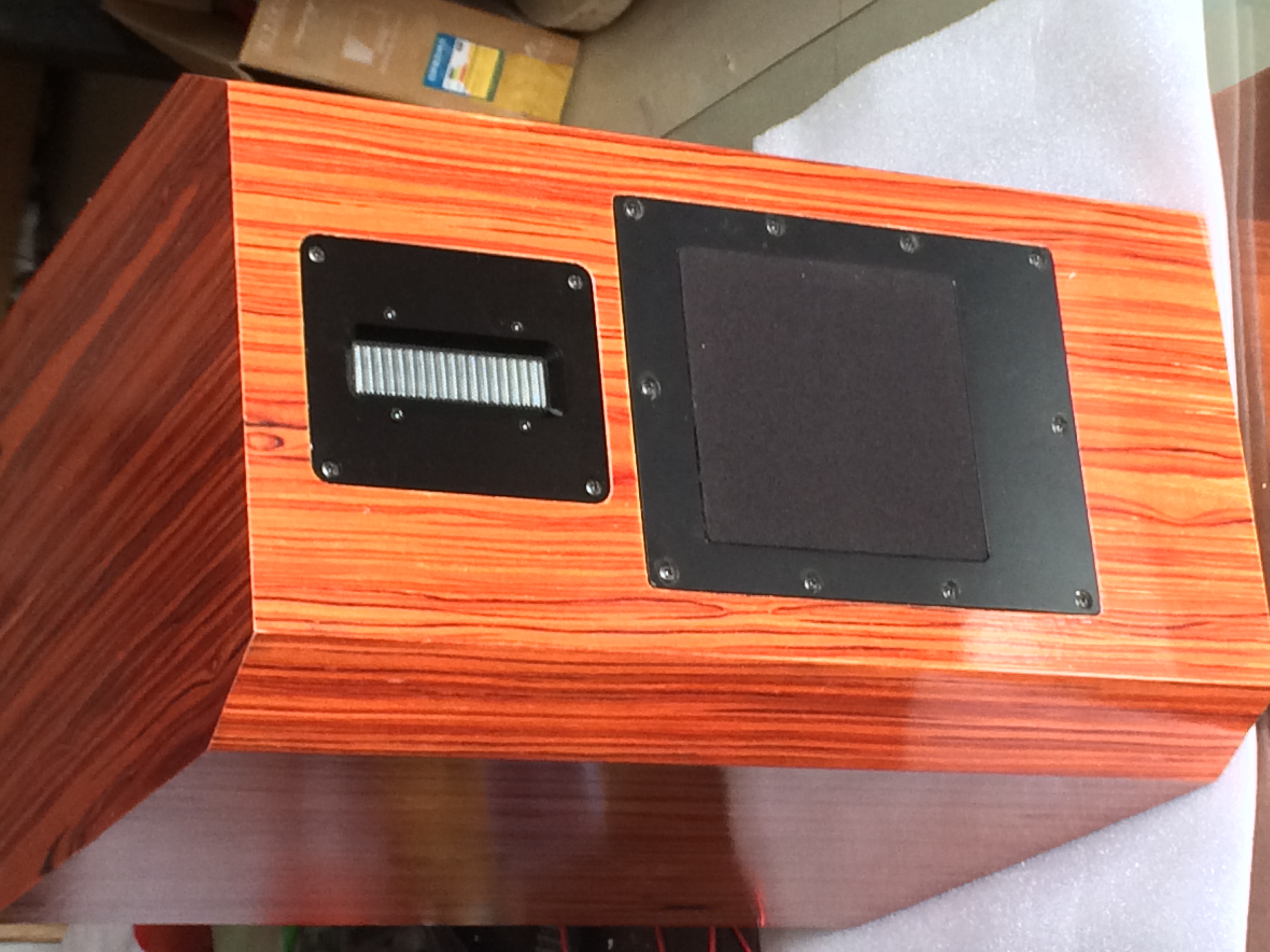

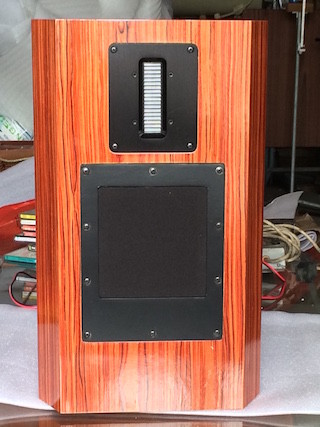

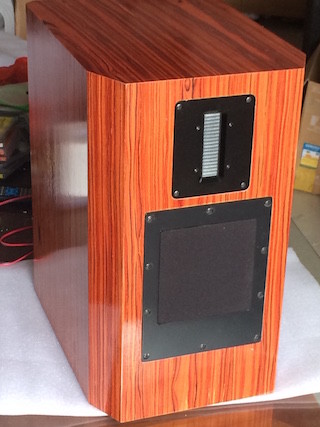

BS-1 Bookshelf Cabinet

BZ-1 Bookshelf BZ-1 Bookshelf
BZ-1 Bookshelf BZ-1 Bookshelf

SPECIFICATIONS

TWEETERCQ76 NEW TYPE RIBBON TWEETER
WOOFERDDQ5-2 NEW TYPE SUPER WOOFER
BOX TYPESEALED BOX & VOLUME ABOUT 30L
DIMENSION27cm(Width)*45cm(Height)*37cm(Depth)
WEIGHTAbout 12.5 kg per item
FREQ RESPONSE50 – 32000Hz， +/-3dB
SENSITIVITY86dB/1m * 1W
NOMINAL IMPEDANCE8 ohms
RATED POWER60W
CROSSOVER DETAIL2-Way, 1500Hz, -12dB/Oct

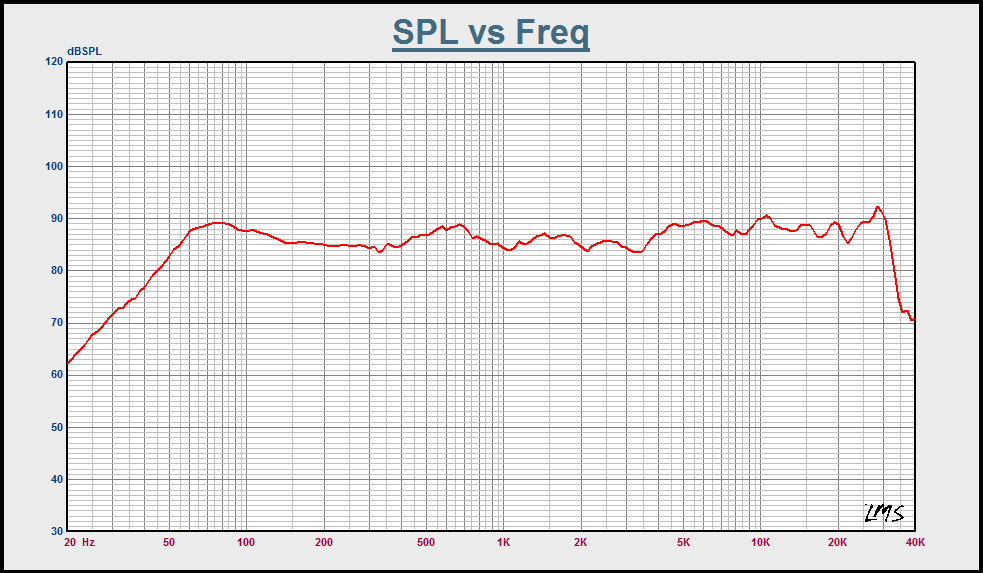

BS-1 LMS SPL CURVE

BZ-1 SPL
Note: This curve was obtained from a normal room(not professional anechoic room).We use near-field method(measure distance 10cm, the sensitivity has been decreased) due to the reflection of the room.
